ARCHIVED DMM - MAY 14, 2007
  DMM TOC > 400 Discount Parcels > 450 Parcel Post

455 Mail Preparation

1.0 General Information for Mail Preparation

1.1 Definition of Presort Process

Presort is the process by which a mailer prepares mail so that it is sorted to at least the finest extent required by the standards for the rate claimed. Generally, presort is performed sequentially, from the lowest (finest) level to the highest level, to those destinations specified by standard and is completed at each level before the next level is prepared. Not all presort levels are applicable in all situations.

1.2 Definition of Mailings

A mailing is a group of pieces within the same class of mail and, except for certain parcel rates, the same processing category that may be sorted together and/or presented under a single minimum volume mailing requirement under the applicable standards. Generally, types of mail that follow different flows through the postal processing system (e.g., automation, nonautomation carrier route, and other nonautomation) and mail for each separate class and subclass must be prepared as a separate mailing. Other specific standards may define whether separate mailings may be combined, palletized, reported, or deposited together.

1.3 Terms for Presort Level

Terms used for presort levels are defined as follows:

a. 5-digit: the delivery address on all pieces includes the same 5-digit ZIP Code.

b. 5-digit scheme (pallets and sacks) for Standard Mail parcels and Package Services parcels: the ZIP Code in the delivery address on all pieces begins with one of the 5-digit ZIP Code zones processed by the USPS as a single scheme, as shown in L606.

c. ASF/BMC: all pieces are addressed for delivery in the service area of the same auxiliary service facility (ASF) or bulk mail center (BMC) (see L601, L602, or L605).

d. Mixed [BMC, etc.]: the pieces are for delivery in the service area of more than one BMC, etc.

e. Residual pieces/bundles/sacks contain material remaining after completion of a presort sequence. Residual mail lacks the volume set by standard to require or allow bundle preparation to a particular destination, and usually does not qualify for a presort rate. Residual mail is also referred to as nonqualifying or working mail.

1.4 Preparation Definitions and Instructions

For purposes of preparing mail:

a. Pieces refers to individually addressed mailpieces. This definition also applies when pieces is used in eligibility standards. Quantities indicated for optional or required sortations always refer to pieces unless specifically excepted.

b. A full sack is defined in the standards for the class and rate claimed.

c. A 5-digit scheme sort for Parcel Post parcels yields 5-digit scheme sacks or pallets for those 5-digit ZIP Codes listed in L606 and 5-digit sacks or pallets for other ZIP Codes. The 5-digit ZIP Codes in each scheme are treated as a single presort destination subject to a single minimum volume (if required), with no further separation by 5-digit ZIP Code required. Sacks or pallets prepared for a 5-digit scheme destination that contain pieces for only one of the schemed 5-digit ZIP Codes are still considered 5-digit scheme sorted and are labeled accordingly. The 5-digit scheme sort is always optional, including when 5-digit sortation is required for rate eligibility. The 5-digit scheme sort need not be used for all possible 5-digit scheme sorts.

d. The required at [quantity] instruction (e.g., "required at 10 pieces") means that the particular unit must be prepared for the corresponding presort level whenever the specified quantity of mail is reached or exceeded. Bundles and containers may contain more than the specified required at quantity up to the applicable maximum physical size. Subject to applicable rate eligibility standards, smaller quantities may be prepared only if permitted. Where specified by standard, required preparation applies only if the mailer chooses to qualify for the corresponding rate.

e. The optional at [quantity] instruction means that the particular unit may be prepared for the corresponding presort level whenever the specified quantity of mail is reached or exceeded. Bundles or containers may contain more than the specified optional at quantity up to the applicable maximum physical size. Smaller quantities may be prepared only if permitted by applicable rate eligibility standards. Standards for quantities with which preparation is optional are often followed by standards for larger quantities with which preparation is required.

f. Entry [facility] (or origin [facility]) refers to the USPS mail processing facility (e.g., "entry BMC") that serves the post office at which the mail is entered by the mailer. If the post office where the mail is entered is not the one serving the mailer's location (e.g., for plant-verified drop shipment), the post office of entry determines the entry facility. Entry SCF includes both single-3-digit and multi-3-digit SCFs. Entry BMC includes subordinate ASFs unless otherwise specified.

g. An overflow sack for Parcel Select (Parcel Post) DSCF rate mail is a 5-digit scheme or 5-digit sack prepared with fewer than seven pieces after all other sacks for that same 5-digit scheme or 5-digit ZIP Code area are prepared with seven or more pieces per sack as required by 4.0, Preparing Parcel Post. If all of the mail is sacked under 4.0, only one overflow sack is permitted for each 5-digit scheme or 5-digit ZIP Code. If a mailing is prepared on pallets, remaining pieces of Parcel Post mail may be prepared in one or more 5-digit scheme or 5-digit overflow sacks only after one or more 5-digit scheme or 5-digit pallets are prepared to meet the minimum pallet requirement specified in 705.8.0. Pieces in overflow sacks qualify for the Parcel Select (Parcel Post) DSCF rates.

h. An overflow pallet in a Parcel Select (Parcel Post) DSCF rate mailing is a 5-digit scheme or 5-digit pallet containing pieces that remain after one or more 5-digit scheme or 5-digit pallets have been prepared to meet the minimum pallet requirement specified in 705.8.0. Only one overflow pallet per 5-digit scheme or 5-digit ZIP Code area is permitted for Parcel Select (Parcel Post) DSCF rate mail palletized under 705.8.0. Pieces on overflow pallets qualify for the DBMC rates.

i. A "logical" presort destination represents the total number of pieces that are eligible for a specific presort level based on the required sortation, but which might not be contained in a single bundle or in a single container (sack or pallet) due to applicable preparation requirements or the size of the individual pieces.

Back to Top

2.0 Sacks

2.1 Maximum Weight

All sack preparation is subject to these standards:

a. Each sack must bear the correct sack label.

b. The weight of a sack and its content must not exceed 70 pounds.

Back to Top

3.0 Sack Labels

3.1 Basic Standards

Sack labels are subject to the following:

a. Use 1-inch labels for sacks with metal 1-inch label holders/closures.

b. Use 2-inch labels for sacks with 2-inch label holder pockets.

c. Use 2-inch labels for sacks with dual plastic label holders/closures. One-inch labels may be used but are not recommended.

d. Illegible labels are not acceptable. Machine-printed labels (available from the USPS) ensure legibility. Legible hand-printed labels are acceptable.

3.2 Physical Characteristics of a Sack Label

A sack label must meet these specifications:

a. Color: white or manila.

b. Length (parallel to printing): 3.250 inches minimum; 3.375 inches maximum.

c. Length (parallel to printing): 3.250 inches minimum; 3.515 inches maximum.

d. Height (perpendicular to printing):

1. For 1-inch labels: 0.937 inch minimum; 0.980 inch maximum.

2. For 2-inch labels: 1.860 inches minimum; 2.015 inches maximum.

3.3 Line 1 (Destination Line)

Line 1 (destination line) must meet these standards:

a. Placement. Line 1 must be the first visible line on the label. It must be completely visible and legible when placed in the label holder. This visibility is ensured if the top of this line is no less than 1/8 (0.125) inch below the top of the label when the label is cut and prepared.

b. Information. Line 1 must contain only the information specified by standard, including the appropriate destination facility prefix (e.g., "ADC"). Two zeros may follow the 3-digit ZIP Code prefix required by labeling standards (e.g., 223 as 22300).

c. Overseas Military Mail. On 5-digit sacks and trays for overseas military destinations, Line 1 shows, from left to right, "APO" or "FPO," followed by "AE" (for ZIP Codes within the ZIP Code prefix range 090-098), "AA" (for ZIP Codes within the 3-digit ZIP Code prefix 340), or "AP" (for ZIP Codes within the ZIP Code prefix range 962-966), followed by the destination 5-digit ZIP Code of the mail in the sack or tray.

3.4 Line 2 (Content Line)

Line 2 (content line) must meet these standards:

a. Placement: Line 2 must be the second visible line on the label. This line must show the class and processing category of the mail in the sack or tray and other information as specified by standards.

b. Codes: The codes shown below must be used as appropriate on Line 2 of sack labels.

Content type

code

Carrier Route

C (type of route)

Carrier Routes

CR-RT or CR-RTS

Digit

D

General Delivery Unit

G

Highway Contract Route

H

Irregular Parcels

IRREG

Machinable

MACH

Mixed

MXD

Nonbarcoded

NON BC (sacks) NBC (pallets and cotrayed or cosacked mail under 705.9.0)

Package Services

PSVC

Parcels

PARCELS

Post Office Box Section

B

Rural Route

R

Scheme

SCH

Working

WKG

3.5 Line 3 (Origin Line)

Line 3 (origin line showing office of mailing or mailer information) must be the bottom line of required information unless the sack contains mail manifested using the Electronic Verification System (eVS) (see for eVS labeling information).
Line 3 must show either the city and state of the entry Post Office or the mailer's name and the city and state of the mailer's location. It is recommended that the mailer's name also appear with the city and state of the entry Post Office.

3.6 Electronic Verification System

All sacks containing parcels prepared and identified using the Electronic Verification System (eVS) under 705.2.9 must show "eVS" (or the alternatives "EVS" or "E-VS") directly below Line 3 using the same size and lettering used for Line 3. As an option, "eVS" may be placed as the first element on Line 3.

3.7 Abbreviations for Lines 1 and 3

Lines 1 and 3 may contain abbreviated information if such abbreviations are those in the USPS City State Product.

3.8 Placement of Extraneous Information

Extraneous information is not permitted on the destination and content lines. It may be placed away from required lines, subject to these conditions:

a. It may be placed above Line 1 in not more than 0.083 inch high type (6-point type).

b. It may appear to the right of required Line 3 information but it must not consist of numerals that resemble a ZIP Code or 3-digit ZIP Code prefix.

c. It must not appear between Lines 1 and 2 (a blank line is permitted), but may appear between Lines 2 and 3 if it does not consist of numerals that resemble a ZIP Code or 3-digit ZIP Code prefix.

d. It may appear below Line 3.

e. A mailer code assigned by the USPS or such words as "Mailer," "From" (or "FR"), or "Entered at" may appear before the required information on Line 3.

Back to Top

4.0 Preparing Parcel Post

4.1 Basic Standards

4.1.1 General

All mailings at Parcel Post rates are subject to these general standards:

a. Each mailing must meet the applicable standards in 401, 402, 453, 455, and 456.

b. All pieces that are palletized must be prepared under 705.8.0.

c. There are no presort, sacking, or labeling standards for single-piece rate Parcel Post.

4.1.2 Parcel Post Marking

Marking requirements for Parcel Post are as follows:

a. Destination Entry Rate Mail. Each piece mailed at a DBMC, DSCF, or DDU Parcel Post rate must bear the marking "Parcel Post" (or "PP") or "Parcel Select" in the postage area as described under 402.2.2.1. If "Parcel Select" is shown in the postage area, then no other marking is required. If "Parcel Post" (or "PP") is shown in the postage area, then the additional marking "Drop Ship" (or "D/S"), or "Parcel Select," or both, must be placed on each piece in either the postage area or the address area (as described under 402.1.3) to indicate that the piece was entered at a destination entry rate.

b. Other Parcel Post Mail. Pieces must bear the marking "Parcel Post" (or "PP") in the postage area as described under 402.2.2.1.

4.1.3 Separation

Except for mail entered at DSCF or DDU rates (which are not zoned rates), Parcel Post pieces must be separated by zones when presented for acceptance unless either the correct postage is affixed to each piece or the mailing is prepared under 4.1.4, Commingled Zones, or the mailing is presented under a special postage payment system under 705.2.0, Manifest Mailing System, 705.3.0, Optional Procedure Mailing System, or 705.4.0, Alternate Mailing System. If DSCF sacks prepared under 4.5.2 are included in the same mailing as DSCF pallets prepared under 705.8.20.1e., then at the time of acceptance the mailer must separate the sacks that are overflow from palletized mail from those sacks that were prepared under the provisions of 4.5.2.

4.1.4 Commingled Zones

Zoned Parcel Post pieces need not be separated by zones when presented for verification, other than as individual pieces or with full correct postage affixed to each piece, subject to this section. Nonidentical-weight pieces not bearing the full correct postage may not be commingled unless authorized by the BMS manager. The mail must be prepared and documented under either of the following:

a. 705.2.0, Manifest Mailing System, or 705.4.0, Alternate Mailing System; or

b. All of these conditions:

1. A unique number is assigned to each sack/pallet in the mailing and printed on a separate line at the top of the sack/pallet label (above the Line 1 information).

2. A detailed list accompanies each mailing or mailing segment, sequenced numerically by the numbers assigned to sacks/pallets in the mailing, that shows the post office where the mail is to be entered (entry post office), a unique identifier for the mailing or mailing segment that also appears on the corresponding postage statement(s), the name and address of the mailer, the permit number (if applicable), the date of mailing, individual line entries for each sack/pallet, and the total number of pieces to each zone and in the entire mailing or mailing segment. Line entries for sacks/pallets containing mail for only one zone must show the sack/pallet number, the sortation level, the zone for which the mail is destined, and the total number of pieces for the sack/pallet. Entries for sacks/pallets containing mail for more than one zone must also show (by zone) the number of pieces to each 3-digit ZIP Code area and the total number of pieces for that zone for the sack/pallet. Mailings are not accepted if there are discrepancies between the information in the detailed listing or on the postage statement and the results of USPS random verification of piece counts and postage.

4.2 Basic Standards for BMC Presort

The BMC Presort per piece discount applies to pieces of Inter-BMC Parcel Post sorted to BMC destinations under L601 for machinable pieces and sorted to BMC and ASF destinations for nonmachinable pieces under L605. To qualify, machinable pieces must be placed in pallet boxes on pallets, and nonmachinable pieces must be placed directly on pallets under 705.8.0. The mail must be entered at a postal facility that is not a BMC and must be part of a mailing containing 50 or more Parcel Post rate pieces.

4.3 Basic Standards for OBMC Presort

The origin bulk mail center (OBMC) Presort per piece discount applies to pieces of Inter-BMC Parcel Post sorted to BMC destinations under L601 for machinable pieces and sorted to BMC and ASF destinations for nonmachinable pieces under L605. To qualify, machinable pieces must be placed in pallet boxes on pallets; and nonmachinable pieces must be placed directly on pallets under 705.8.0. The mail must be entered at a BMC listed in L601 and must be part of a mailing containing 50 or more Parcel Post rate pieces.

4.4 Parcel Select—DBMC Rates

For DBMC rates, see 456.2.2.2, DBMC Rates.

4.5 Parcel Select—DSCF Rates

4.5.1 General

To qualify for DSCF rates, pieces must be for the same SCF area under L005 and must be prepared as follows:

a. Sorted to optional 5-digit scheme destinations under L606, Column B, and 5-digit destinations, either in sacks or directly on pallets or in pallet boxes. Pieces must be part of a mailing of at least 50 Parcel Post pieces. Mailers must enter the pieces at the designated SCF, under L005, that serves the 5-digit ZIP Code destinations of the pieces. The DSCF rate is not available for palletized mail for facilities that are unable to handle palletized mailings. Refer to the Drop Shipment Product available from the National Customer Support Center (NCSC) (see 608.8.1) to determine if the facility serving the 5-digit destination can handle pallets.

b. Any remaining nonmachinable parcels (as defined in 401.2.3.2) sorted to 3-digit ZIP Code prefixes in L002, Column C. Machinable parcels may not be sorted to the 3-digit level.

4.5.2 Sacking and Labeling

Sacking requirements for DSCF rates are as follows:

a. Only 5-digit scheme and 5-digit sacks are permitted.

b. Each 5-digit scheme and 5-digit sack must contain a minimum of seven pieces. Machinable and nonmachinable pieces may be combined in the same sack to meet this requirement. One overflow sack per 5-digit ZIP Code is permitted (no piece minimum).

c. 5-digit scheme sack labeling: Line 1, use L606, Column B; for Line 2, "PSVC PARCELS 5D SCH."

d. 5-digit sack labeling: Line 1, use city, state, and 5-digit ZIP Code on mail (see 3.3 for overseas military mail); for Line 2, "PSVC PARCELS 5D."

e. 3-digit nonmachinable sack labeling: Line 1, use L002, Column A; for Line 2, "PSVC IRREG 3D."

f. See 705.8.0 for option to place 5-digit scheme and 5-digit DSCF sacks and 3-digit nonmachinable sacks on an SCF pallet.

4.6 Parcel Select—DDU Rates

4.6.1 General

The requirements for DDU rates are as follows:

a. For the DDU rate, pieces must be part of a mailing of at least 50 Parcel Post pieces.

b. The pieces must be entered by the mailer at the postal facility where the carrier delivers the parcels (delivery unit) as defined in 456.2.1.

c. There are no minimum sacking or pallet preparation standards. DDU rate mailings may be bedloaded, sacked, placed directly on pallets, or placed in pallet boxes on pallets. Machinable and nonmachinable pieces may be combined in the same sack or on the same pallet (including pallet boxes on pallets).

d. If the delivery unit serves more than one 5-digit ZIP Code, the pieces must be separated by 5-digit ZIP Code when unloaded, unless prepared as optional 5-digit scheme sacks or pallets. Refer to the Drop Shipment Product available from the National Customer Support Center (see 608.8.1) to determine the location of the delivery unit, whether it serves more than one 5-digit ZIP Code, and whether it can handle pallets.

e. Sacked mail must be labeled as follows:

1. 5-digit scheme: Line 1, L606; Line 2, "PSVC PARCELS 5D SCH."

2. 5-digit: Line 1, city, state, and 5-digit ZIP Code on mail (see 3.3c. for overseas military mail); Line 2, "PSVC PARCELS 5D."

4.6.2 Parcels With Hold For Pickup Endorsement

In addition to the requirements in 4.6.1, mailers or their agents must prepare Parcel Select DDU parcels bearing the "Hold For Pickup" endorsement as follows:

a. Submit a written request to the manager, Business Mailer Support (BMS) (see 608.8.1 for address).

b. Mail the parcels using an authorized manifest mailing system.

c. Enter parcels at the Parcel Select DDU rates under 4.6 and 456.2.0.

d. Exchange electronic files with the USPS through an approved file transfer protocol to notify the addressees when parcels are available for pickup at the designated post office and to notify the mailer or agent that items are available to be picked up as "return to sender."

e. Place the official Hold For Pickup endorsement, Label LAB-HFP, on the address side of each parcel. The label must not cover the address label or the barcode information. See Exhibit 4.6.2e.

Exhibit 4.6.2e Official Hold For Pickup Endorsement, Label LAB-HFP Shows the official Hold For Pickup endorsement label. (click for larger image)

f. Affix a properly formatted address label that has been approved by the National Customer Support Center (NCSC) (see 608.8.1 for address).

g. In addition to the markings defined in 402.2.3, address labels on a Hold For Pickup parcel must contain the following elements. See Exhibit 4.6.2g.

1. The top portion of the address label must contain the return address for the mailer or agent and the postage indicia.

2. The name and address for the customer (the "addressee") must appear in at least 10-point type. Immediately to the left of the customer's name, the words "HOLD FOR:" must appear in all capital letters.

3. For Parcel Return Services (PRS) participants only, the marking, "PARCEL RETURN SERVICES REQUESTED" or "PRS REQUESTED," followed by the participant's unique PRS 569 prefix ZIP Code. This marking must be in at least 10-point type, in all capital letters.

4. The words, "DELIVER TO:" in at least 12-point type and in all capital letters must appear immediately to the left of the post office name, city (optional), state (optional), and ZIP Code where the addressee will pick up the parcel.

5. In the center of the label the words "HOLD FOR PICKUP" must appear in reverse print (white print on a black background) in at least 24-point type and in all capital letters.

6. The lower half of the address label must contain an approved UCC/EAN Code 128 Delivery Confirmation or Signature Confirmation barcode or an integrated barcode (which combines a confirmation service with insurance) as defined in Publication 91, Confirmation Services Technical Guide.

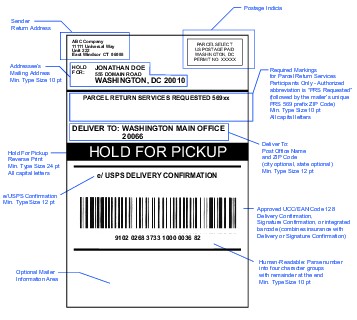

Exhibit 4.6.2g Hold For Pickup Address Label Shows the format for a Hold For Pickup address label. (click for larger image)

4.7 Optional Machinable Parcel Preparation

4.7.1 Basic Standards

Mailers may opt to prepare Parcel Post machinable parcels in sacks under 4.7.2 or on pallets under 705.8.0. Pieces must be separated by zones when presented to the USPS unless either the correct postage is affixed to each piece or the mailing is prepared under 4.1.4, Commingled Zones.

4.7.2 Sack Preparation

Sack size, preparation sequence, and Line 1 labeling:

a. 5-digit scheme: optional (minimum of 10 pieces or 20 pounds); for Line 1, use L606, Column B.

b. 5-digit: required (minimum of 10 pieces or 20 pounds); for Line 1, use city, state and 5-digit ZIP Code destination of pieces (see 3.3c. for military mail).

c. ASF: optional; allowed only for mail deposited at an ASF to claim the DBMC rate (minimum of 10 pieces or 20 pounds); for Line 1, use L602, Column B. Exhibit 456.2.2.2 determines DBMC rate eligibility.

d. BMC: required (minimum of 10 pieces or 20 pounds); for Line 1, use L601, Column B. Exhibit 456.2.2.2 determines DBMC rate eligibility.

e. Mixed BMC: required (no minimum); for Line 1, use "MXD" followed by the L601, Column B information for the BMC serving the 3-digit ZIP Code prefix of the entry post office.

4.7.3 Sack Line 2

Line 2:

a. 5-digit scheme: "PSVC MACH 5D SCHEME" or "PSVC MACH 5D SCH."

b. 5-digit: "PSVC MACH 5D."

c. ASF: "PSVC MACH ASF."

d. BMC: "PSVC MACH BMC."

e. Mixed BMC: "PSVC MACH WKG."

Back to Top

5.0 Standards for Barcode Discounts

5.1 Standards for Barcoded Mail

The barcode discount applies to Inter-BMC/ASF and Intra-BMC/ASF Parcel Post machinable parcels (401.1.5) that bear a barcode under 708.5.0 for the ZIP Code of the delivery address and are part of a mailing of 50 or more Parcel Post rate pieces.

Back to Top
