202 Elements on the Face of a Mailpiece

Overview

1.0 All Mailpieces

2.0 Address Placement

3.0 Placement and Content of Mail Markings

4.0 Placement and Physical Standards for Endorsements

5.0 Barcode Placement Letters and Flats

6.0 Barcode Placement for Parcels

7.0 Repositionable Notes (RPNs)

8.0 Facing Identification Mark (FIM)

9.0 Hazardous Materials



1.0 All Mailpieces

1.1 Clear Space

A clear space must be available on all mail for the address, postage (postmarks), endorsements, and other mail markings (i.e., extra service label or form).

1.2 Delivery and Return Address

The delivery address specifies the location to which the USPS is to deliver a mailpiece. Except for mail prepared with detached address labels (DALs) or detached marketing labels (DMLs) under 602.4.0, the piece must have the address of the intended recipient, visible and legible, only on the side of the piece bearing postage. (Periodicals do not display postage and the address may appear on either side). Use at least 8-point type (each character must be at least 0.080 inch high). A sans-serif font is preferred. Addresses printed in all capital letters are also preferred. A return address is required in specific circumstances (see 4.2 and 602.1.5 for more information about return addresses). See 602 for additional information regarding addressing.)

1.3 Postage Payment

The mailer is responsible for proper payment of postage. Standards for postage payment are specified for each shape and class of mail.

2.0 Address Placement

2.1 Letters

The location of the delivery address on a letter-size mailpiece determines which dimensions are the length and height of the piece. The length is the dimension parallel to the address as read; the height is the dimension perpendicular to the length. Consequently, the placement of the address may render a piece nonmailable or nonmachinable (see 601.1.1.3). See 601.6.3 for addressing standards when a window envelope is used. On a letter-size piece, the recommended address placement is within the optical character reader (OCR) read area, which is a space on the address side of the mailpiece defined by these boundaries (see Exhibit 2.1):

  1. Left: 1/2 inch from the left edge of the piece.
  2. Right: 1/2 inch from the right edge of the piece.
  3. Top: 2-3/4 inches from the bottom edge of the piece.
  4. Bottom: 5/8 inch from the bottom edge of the piece.

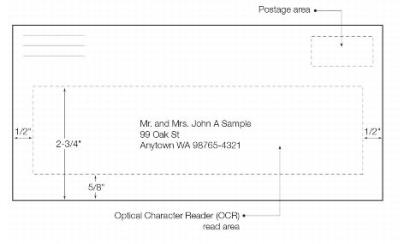

Exhibit 2.1 OCR Read Area

Exhibit 202.2.1Exhibit 2.1 OCR Read Area

2.2 Flats
2.2.1 Basic Standards

On all Periodicals, USPS Marketing Mail, Bound Printed Matter, Media Mail, and Library Mail flats mailed at presorted, automation, or carrier route prices, mailers must place the delivery address at least 1/8 inch from any edge of the mailpiece. For the purposes of these standards, the “delivery address” is the recipient’s name or other identification; the company information line; the street and number, and any necessary secondary information; and the city, state, and ZIP Code. The delivery address may appear on the front or the back of the mailpiece (but must be on the side bearing postage, except for Periodicals), parallel or perpendicular to the top edge, but it cannot be upside down as read in relation to the top edge. See 2.2.2 for additional standards for enveloped or polywrapped pieces, and card-style pieces; and 2.2.3 for bound or folded pieces not in envelopes or polywrap. See 601.6.3 for addressing standards when a window envelope is used.

2.2.2 Address Placement on Enveloped or Polywrapped Pieces

The following standards apply to enveloped, polywrapped, or card-type Periodicals (including shrinkwrapped Firm bundles), USPS Marketing Mail, Bound Printed Matter, Media Mail, and Library Mail flat-size pieces mailed at presorted, automation, or carrier route prices (for examples, see Customer Support Ruling PS-352.):

  1. The “top” of the mailpiece is either of the shorter edges.
  2. The entire delivery address must be within the top half of the mailpiece (see Customer Support Ruling PS-352), except under 2.2.2c or 2.2.2d. Optimal placement is at the top edge (while maintaining the 1/8-inch clearance requirement).
  3. If a vertical address will not fit entirely within the top half, the address may cross the midpoint if it is placed within 1 inch of the top edge.
  4. If the delivery address is placed on an insert polywrapped with the host piece:
    1. The address must not appear on a component that rotates within the bag.
    2. The address must remain visible throughout the addressed component‘s range of motion.
    3. The insert must be affixed to maintain the address entirely in the top half throughout processing and delivery or, if not affixed, the insert must maintain at least the beginning 0.5 inch of the address in the top half. The “beginning 0.5 inch” means the first half-inch of the recipient, delivery address, and city/state/ZIP Code lines, and not the end of each line.
2.2.3 Address Placement on Bound or Folded Pieces

The following standards apply to bound or folded (see 2.2.2 for all card-type pieces), Periodicals, USPS Marketing Mail, Bound Printed Matter, Media Mail, and Library Mail flat-size pieces mailed at presorted, automation, or carrier route prices not in envelopes or polywrap (for examples, see Customer Support Ruling PS-352.):

  1. The “top” is the upper edge of the mailpiece when the bound or final folded edge is vertical and on the right side of the piece. Exception: For Carrier Route (or Enhanced Carrier Route) saturation pieces, the “top” of the mailpiece is either of the shorter edges.
  2. The entire delivery address must be within the top half of the mailpiece (see Customer Support Ruling PS-352), except under 2.2.3c. Optimal placement is at the top edge (while maintaining the 1/8-inch clearance requirement).
  3. If a vertical address will not fit entirely within the top half, the address may cross the midpoint if it is placed within 1 inch of the top edge.
2.2.4 Type Size and Line Spacing

On all First-Class Mail, Periodicals, USPS Marketing Mail, Bound Printed Matter, Media Mail, and Library Mail flat-size pieces mailed at presorted, automation, or carrier route prices, mailers must print the delivery address using at least 8-point type (each character must be at least 0.080 inch high). A sans serif font is preferred. Addresses printed in all capital letters are also preferred. These additional standards apply to automation pieces:

  1. The individual characters in the address cannot overlap. The individual lines in the address cannot touch or overlap. A minimum 0.028-inch clear space between lines is preferred.
  2. Each element on each line of the address may be separated by no more than five blank character spaces. One or two blank spaces is preferred. For example, “ANYTOWN US 12345,” not “ANYTOWN US 12345.” A “blank” character space can equal the width of the widest character in the address.
  3. For pieces that bear an Intelligent Mail barcode with a delivery point routing code under 204.1.3, mailers may print the delivery address in a minimum of 6-point type (each character must be at least 0.065 inch high) if all capital letters are used.

3.0 Placement and Content of Mail Markings

3.1 Enclosures

Enclosures, attachments, and mixed price mailpieces must be marked under the applicable standards in 703.9.0 and 705.18.0.

3.2 Printing and Designs

Required markings may be printed by a postage meter or other means that ensures a legible marking. A marking may not include or be part of a decorative design or advertisement.

3.3 Priority Mail Express and Priority Mail Markings
3.3.1 Priority Mail Express

Priority Mail Express pieces must be marked “Priority Mail Express,” by using a mailing label according to 215.2.1

3.3.2 Priority Mail

[4-1-24] Priority Mail pieces must have the basic price marking of “Priority Mail” printed in a prominent location on the address side. When a shipping address label is used, the basic required price marking must be printed as provided under 3.9.

3.3.3 Additional Markings for Priority Mail Express and Priority Mail

In addition to the basic price marking in 3.3.1 and 3.3.2, except for pieces paid using a USPS Returns service or permit imprint, Priority Mail Express and Priority Mail pieces claimed at Commercial prices also must bear the “Commercial” price marking, printed on the piece or produced as part of the meter imprint or PC Postage indicia. Place the “Commercial” price marking directly above, directly below, or to the left of the postage.

3.4 Priority Mail Cubic Markings
3.4.1 Price Marking—Postage Evidencing Systems

Priority Mail pieces priced at the cubic price must be marked “Priority Mail” and bear the applicable marking that reflects the correct price tier printed on the piece or produced as part of the postage indicia. The cubic tiers are determined by the cubic measurement of each mailpiece up to the defined threshold, (for example, measurements from .01 up to .10 for “Cubic .10” and from .101 up to .20 for “Cubic .20”). Place the marking directly above, directly below, or to the left of the postage. Approved markings are as follows:

  1. “Cubic .10”
  2. “Cubic .20”
  3. “Cubic .30”
  4. “Cubic .40”
  5. “Cubic .50”
3.4.2 Price Marking—Permit Imprint

Priority Mail permit imprint pieces claiming the cubic price must be marked “Priority Mail” and bear the “cubic” marking (see 3.4.3 for soft pack and padded envelopes), printed on the piece or produced as part of the permit imprint indicia. Place the marking directly above, directly below, or to the left of the postage. The approved marking is “Cubic” (or “CUBIC,” or “cubic”).

3.4.3 Soft Pack and Padded Envelope Markings

Regardless of the postage payment method used, soft pack and padded envelopes must be marked “Priority Mail” in addition to the tier price markings in 3.4.1 and the dimensions (length and width) of the original packaging. Place the markings directly above, directly below, or to the left of the postage.

3.5 First-Class Mail and USPS Marketing Mail Markings
3.5.1 Types of Markings

Mailpieces must be marked under the corresponding standards to show the class of service and/or price paid:

  1. Basic Marking. The basic required marking that indicates the class or subclass which must be printed or produced as part of; directly below; or to the left of the permit imprint, meter imprint, or stamp as follows:
    1. “First-Class”
    2. “Marketing” or “MKTG” or “MKT”, “Standard” or “STD” 1
    3. “Presorted USPS Marketing” or “PRSRT MKTG” or “PRSRT MKT”, “Presorted Standard” or “PRSRT STD” 1
    4. “Nonprofit Organization,” “Nonprofit Org.,” or “Nonprofit”
  2. Other Markings. The price-specific markings “AUTO,” “Presorted” (or “PRSRT”); “Single-Piece” (or “SNGLP”) (First-Class Mail only); and “ECRLOT,” “ECRWSH,” “ECRWSS,” and “Customized MarketMail” (or “CUST MKTMAIL” or “CMM”) (USPS Marketing Mail only) may be placed as follows:
    1. In the location specified in 3.5a.
    2. In the address area on the line directly above or two lines above the address if the marking appears alone or if no other information appears on the line with the marking except optional endorsement line information under 203.7.0 or carrier route bundle information under 204.3.0.
    3. If preceded by two asterisks (**), the “AUTO,” “PRESORTED” (or “PRSRT”), “CUSTOMIZED MARKETMAIL” (or “CUST MKTMAIL” or “CMM”), or “Single-Piece” (or “SNGLP”) marking also may be placed on the line directly above or two lines above the address in a mailer keyline or a manifest keyline, or it may be placed above the address and below the postage in an MLOCR ink-jet printed date correction/meter drop shipment line. Alternatively, the “AUTO,” “PRSRT,” or “SNGLP” marking may be placed to the left of the barcode clear zone (subject to the standards in 5.0) on letter-size pieces.
  3. Additional Requirements for Carrier Route. “ECRLOT,” “ECRWSH,” and “ECRWSS” (USPS Marketing Mail only) must appear in their entirety wherever placed, except “ECR” may be placed in the postage area if “LOT,” “WSH,” or “WSS,” as applicable, is placed in the line above or two lines above the address, as specified in 3.5b. Pieces not mailed at ECR prices must not bear these markings.
  4. [4-1-24] When a shipping address label is used, the basic required price marking must be printed as provided under 3.9.
3.5.2 Marking Expedited Handling on Mail

Mailpieces bearing references to expedited handling or delivery (e.g., “Urgent,” “Rush Delivery,” “Time Sensitive”) meet the requirements under 604.5.3.5.

3.6 USPS Ground Advantage — Commercial Markings
3.6.1 Basic Markings

[4-1-24] The basic required marking “USPS Ground Advantage” must be printed as part of, directly below, or to the left of the postage on all parcels. When a shipping address label is used, the basic required price marking must be printed as provided under 3.9.

3.6.2 USPS Ground Advantage — Commercial Cubic Markings

USPS Ground Advantage — Commercial pieces claimed at the cubic price must be marked as provided under 3.6.1 and bear the applicable marking that reflects the correct price tier printed on the piece or produced as part of the postage indicia. The cubic tiers are determined by the cubic measurement of each mailpiece up to the defined threshold, (for example, measurements from .01 up to .10 for “Cubic .10” and from .101 up to .20 for “Cubic .20”). Place the marking directly above, directly below, or to the left of the postage. Approved markings are as follows:

  1. “Cubic .10.”
  2. “Cubic .20.”
  3. "Cubic .30.”
  4. “Cubic .40.”
  5. “Cubic .50.”
  6. “Cubic .60.”
  7. “Cubic .70.”
  8. “Cubic .80.”
  9. “Cubic .90.”
  10. “Cubic 1.00.”
3.6.3 Price Marking – Permit Imprint

USPS Ground Advantage – Commercial permit imprint pieces claimed at the cubic price must be marked as provided under 3.6.1 and bear the “cubic” marking printed on the piece or produced as part of the permit imprint indicia. Place the marking directly above, directly below, or to the left of the postage. The approved marking is “Cubic” (or “CUBIC,” or “cubic”).

3.6.4 Soft Pack and Padded Envelope Markings

Regardless of the postage payment method used, soft pack and padded envelopes must be marked as provided under 3.6.1 in addition to the tier price markings in 3.6.2 and the dimensions (length and width) of the original packaging. Place the markings directly above, directly below, or to the left of the postage.

3.7 Parcel Select, Bound Printed Matter, Media Mail, and Library Mail Markings
3.7.1 Basic Markings

[4-1-24][1-21-24] The basic required marking (i.e., “Parcel Select”, “USPS Connect Local”,“Bound Printed Matter”, “Media Mail”, “Library Mail”) must be printed on each piece claimed at the respective price. The basic required marking must be placed in the postage area (printed or produced as part of, or directly below or to the left of, the permit imprint indicia or meter stamp or impression). When a shipping address label is used, the basic required price marking must be printed as provided under 3.9.

3.7.2 Parcel Select Markings

Each piece in a Parcel Select mailing must bear a price marking. Markings must appear in either the postage area described in 3.7.1 or in the address area on the line directly above or two lines above the address if the marking appears alone (when no other information appears on that line). The following product markings are required:

  1. Destination Entry — “Parcel Select”.
  2. [1-21-24]

  3. USPS Connect Local — “USPS Connect Local”.
3.7.3 USPS Connect Local

In addition to the basic marking “USPS Connect Local”, each piece of USPS Connect Local must bear the 5-digit ZIP Code of the local mailing Post Office (i.e., USPS Connect Local — 12345) additional price marking. For USPS Connect Local Sunday delivery, in addition to the 5-digit ZIP Code additional price marking, the piece must include the marking “SUN” (i.e., USPS Connect Local — 12345 SUN).

3.7.4 Bound Printed Matter Markings

In addition to the basic marking “Bound Printed Matter” or “BPM,” each piece of Bound Printed Matter mailed at a presorted or carrier route price must bear additional price markings. The additional markings may be placed in the postage area as specified in 3.7.1. Alternatively, these markings may be placed in the address area on the line directly above or two lines above the address if the marking appears alone, or if no other information appears on the line with the marking except postal optional endorsement line information under 203.7.0 or postal carrier route bundle information under 204.3.0. The additional price markings are:

  1. For Presorted price mail, the additional required marking is “Presorted” (or “PRSRT”). For presorted flats claiming the barcode discount prepared under 265.7.0, the optional marking “AUTO” may be used in place of “Presorted” (or “PRSRT”). If the “AUTO” marking is not used, the automation price flats must bear the “Presorted” (or “PRSRT”) price marking.
  2. For carrier route price mail, the additional required marking is “Carrier Route Presort” (or “CAR-RT SORT”).
3.7.5 Address and Firm Designation on Bound Printed Matter Machinable Parcels

When a Bound Printed Matter machinable parcel consists of multiple pieces for a single address secured with transparent shrinkwrap, the delivery address information and barcoded pressure-sensitive Label F or firm optional endorsement line must be visible and readable by the naked eye. Mailers must label the parcel using one of the following options:

  1. A firm optional endorsement line under 203.7.0, followed by the 5-digit destination ZIP Code of the parcel.
  2. A blue, pressure-sensitive, barcoded Label F on the address side of the parcel.
3.7.6 Media Mail and Library Mail Markings

Each piece of Media Mail or Library Mail mailed at a presorted price must bear the required marking “Presorted” or “PRSRT” in addition to the basic marking “Media Mail” or “Library Mail,” as applicable. This additional marking may be placed in the postage area specified in 3.7.1. Alternatively, these markings may be placed in the address area on the line directly above or two lines above the address if the marking appears alone or if no other information appears on the line with the marking except postal optional endorsement line information under 203.7.0.

3.8 [1-21-24] USPS Returns Service Markings

The basic required markings indicating USPS Returns service are as follows and must be printed on a shipping address label:

  1. Priority Mail Express Return.
  2. Priority Mail Return.
  3. USPS Ground Advantage Return.
3.9 [4-1-24] Shipping Address Label Markings
3.9.1 General

When a shipping address label is used, it must include the correct service indicator composed of two elements, the service icon (except as provided under 3.9.2) and service banner. For information on the markings and specifications, see the Parcel Labeling Guide available on the PostalPro website at postalpro.usps.com/parcellabelingguide. Failure to comply may subject the piece to the IMpb noncompliance fee.

3.9.2 Hazardous Materials

When a shipping address label is used on items containing mailable hazardous materials, it must include the hazardous materials icon in lieu of the service icon as provided in the Parcel Labeling Guide.

3.10 Marking Hazardous Materials

All mailable hazardous materials must be labeled and/or marked as required in Publication 52, Hazardous, Restricted, and Perishable Mail.

4.0 Placement and Physical Standards for Endorsements

4.1 Endorsements for Delivery Instructions and Ancillary Services

The mailer must place the correct endorsement on each mailpiece to provide delivery instructions (retention period under 507.4.3.4, or carrier release under 4.3c) or to request an ancillary service (forwarding, return, or address correction under 507.1.0), subject to the corresponding standards for use and availability.

4.2 Return Address

When a printed ancillary service endorsement is used, or a request is embedded within an Intelligent Mail barcode, a domestic return address must be placed in the upper left corner of the address side of the mailpiece or the upper left corner of the addressing area. If the return address is a multiple delivery address, it must show a unit designator (e.g., an apartment number).

4.3 Placement of Endorsement

Placement of the endorsement on the mailpiece is determined as follows:

  1. A retention period specified by the mailer must be placed directly above the return address.
  2. Any ancillary service endorsement (e.g., Address Service Requested, Forwarding Service Requested, Return Service Requested, Change Service Requested) must be placed in one of these four positions:
    1. Directly below the return address.
    2. Directly above the delivery address area (which includes the delivery address block and any related nonaddress elements such as a barcode, keyline, or optional endorsement line).
    3. Directly to the left of the postage area and below or to the left of any price marking.
    4. Directly below the postage area and below any price marking.
  3. The carrier release endorsement “CARRIER—LEAVE IF NO RESPONSE” must appear directly to the left of the postage area (preferred) or placed directly below the return address. A minimum 1/4 inch clear space must appear between any other printing and the carrier release endorsement. If an ancillary service endorsement is used, the carrier release endorsement must be separated from the ancillary service endorsement by the equivalent of one blank line of the type size used.
4.4 Physical Standards for Endorsements

The endorsement or, if combined, endorsements must meet these physical standards:

  1. The type size of the endorsement must be at least 8 points.
  2. The read direction of the endorsement and return address must be the same as the read direction of the delivery address.
  3. The color contrast between the endorsement and the mailpiece background must be kept at a reasonable degree. A brilliant colored background or reverse printing is not permitted.
  4. A clear space of at least 1/4 inch around (above, below, and both sides) the total area containing the endorsement(s) is required. This 1/4-inch clear space is not required for an endorsement that is applied with a multiline optical character reader (MLOCR) inkjet and placed in the location directly below the postage area and any price marking if the endorsement is clear and legible.

5.0 Barcode Placement Letters and Flats

5.1 Letter-Size
5.1.1 Barcode Clear Zone

Each reference to letter or letter-size piece in 5.0 includes both letters and postcards. Each letter-size piece in a machinable price, automation price, or an Enhanced Carrier Route mailing at automation letter prices, must have a barcode clear zone unless the piece bears an Intelligent Mail barcode with a delivery point routing code (see 204.1.2) in the address block. The barcode clear zone and all printing and material in the clear zone must meet the reflectance standards in 204.1.3. The barcode clear zone is a rectangular area in the lower right corner of the address side of cards and letter-size pieces defined by these boundaries:

  1. Left: 4-3/4 inches from the right edge of the piece.
  2. Right: right edge of the piece.
  3. Top: 5/8 inch from the bottom edge of the piece.
  4. Bottom: bottom edge of the piece.
5.1.2 General Barcode Placement for Letters

Barcode placement for letters is as follows:

  1. Each automation price letter and each letter claimed at Enhanced Carrier Route automation saturation or high density letter prices must bear an Intelligent Mail barcode with a correct delivery point routing code either in the address block or in the barcode clear zone as provided in 5.1.3 and 5.1.4.
  2. A nonautomation letter may bear an Intelligent Mail barcode under 204.1.0 either in the address block or in the barcode clear zone as provided in 5.1.3 and 5.1.4.
  3. Letter-size pieces that weigh more than 3.5 ounces may include an Intelligent Mail barcode with the correct delivery point routing code only in the address block.
5.1.3 Barcode on a Mailpiece

If an Intelligent Mail barcode with the correct delivery point routing code is printed directly on the mailpiece in the lower right corner, the entire barcode must be within the barcode read area defined by these limits:

  1. Horizontally, the leftmost bar must be between 3-1/2 inches and 4-1/4 inches from the right edge of the piece.
  2. Vertically, the barcode must be within the area between 3/16 inch and 1/2 inch, both measured from the bottom edge of the piece.
5.1.4 Additional Barcode Permissibility

An automation letter or a letter claimed at Enhanced Carrier Route saturation or high density automation letter prices may not bear a 5-digit or ZIP+4 Intelligent Mail barcode in the lower right corner (barcode clear zone). The piece may bear an additional Intelligent Mail barcode in the address block only if a qualifying Intelligent Mail barcode with a delivery point routing code appears in the lower right corner.

5.1.5 Business Reply Mail

For Business Reply Mail under 505.1.0, a ZIP+4 Intelligent Mail barcode may appear in the address block when printed directly on the mailpiece, printed on an insert that appears through a window, or on an address label affixed directly to the piece; or it may appear in the lower right corner either printed directly on the mailpiece or on an insert that appears through a window.

5.2 Flat-Size
5.2.1 Barcode Placement for Flats

On any flat-size piece claimed at automation prices, the piece must bear an Intelligent Mail barcode with a delivery point routing code. The barcode may be anywhere on the address side as long as it is at least 1/8 inch from any edge of the piece. The portion of the surface of the piece on which the Intelligent Mail barcode is printed must meet the barcode dimensions and spacing requirements in 204.1.0. Intelligent Mail barcodes are subject to standards in 204.1.3.2. An additional Intelligent Mail barcode may also appear in the address block of an automation flat, when the qualifying Intelligent Mail barcode is not in the address block. Other non-USPS barcodes may appear on the address side of a flat if the barcode format is not discernable to automated postal flat-sorting equipment.

5.2.2 Delivery Point Routing Code Numeric Equivalent

In automation mailings only, the numbers corresponding to the delivery point routing code may appear in the delivery address. If read from left to right: a correct numeric equivalent consists of five digits, a hyphen, and six digits.

5.3 Barcode in Address Block

When the barcode is included as part of the address block:

  1. The barcode must be placed in one of these positions:
    1. Above the address line containing the recipient’s name.
    2. Below the city, state, and ZIP Code line.
    3. Above or below the keyline information.
    4. Above or below the optional endorsement line.
  2. The printing of the barcode is prohibited anywhere between the address line containing the recipient’s name and the city, state, and ZIP Code line.
  3. The minimum clearance between the Intelligent Mail barcode and any information line above or below it within the address block must be at least 0.028 inch. The separation between the barcode and top line or bottom line of the address block must not exceed 0.625 (5/8) inch. The clearance between the leftmost and rightmost bars and any adjacent printing must be at least 0.125 (1/8) inch.
  4. If a window envelope is used, the clearance between the leftmost and rightmost bars and any printing or window edge must be at least 0.125 (1/8) inch. The clearance between the Intelligent Mail barcode and the top and bottom window edges must be at least 0.028 inch. These clearances must be maintained during the insert’s range of movement in the envelope. Address block windows on heavy letter mail must be covered. Covers for address block windows are subject to 5.7.
  5. If an address label is used, a clear space of at least 0.125 (1/8) inch must be left between the barcode and the left and right edges of the address label. The clearance between the Intelligent Mail barcode and the top and bottom edges of the address label must be at least 0.028 inch.
  6. The rightmost bar must be at least 1/2 inch from the right edge of the mailpiece, and the leftmost bar must be less than 10-1/2 inches from the right edge of the mailpiece and at least 1/2 inch from the left edge of the mailpiece; the top of each bar must be less than 4 inches from the bottom edge of the mailpiece; and the bottom line of the address block, including the barcode, must be at least 5/8 inch from the bottom of the mailpiece.
5.4 Barcode on Insert in Barcode Window

If the barcode is printed on an insert to appear through a barcode window in the lower right corner of an envelope:

  1. The envelope and window must meet the physical standards in 5.6 and 5.7.
  2. The entire barcode must be within the barcode clear zone (but need not be completely within the barcode read area).
  3. When the insert showing through the window is moved to any of its limits inside the envelope, the entire barcode must remain within the barcode clear zone. In addition, a clear space must be maintained that is at least 0.125 (1/8) inch between the barcode and the left and right edges of the window, at least 0.1875 (3/16) inch between the barcode and the bottom edge of the mailpiece, and at least 0.028 inch between the barcode and the top edge of the window.
5.5 Edges of Barcode Window

The edges of the barcode window must meet these criteria:

  1. Left: at least 4-3/4 inches from the right edge of the envelope.
  2. Right: at least 1/4 inch from the right edge of the envelope.
  3. Top: at least 5/8 inch from the bottom of the envelope.
  4. Bottom: form part of the bottom edge of the envelope.
5.6 Window Construction

A barcode window must extend fully to the bottom edge of the envelope, must be of wraparound construction, and must be covered subject to 5.7.

5.7 Window Cover

The window cover must be of a nontinted clear or transparent material (e.g., cellophane or polystyrene) that permits the barcode and its background, as viewed through the window material, to meet the reflectance standards in 204.1.4. The edges of the window cover must be securely glued to the envelope.

6.0 Barcode Placement for Parcels

6.1 GS1-128 Routing Barcode or Intelligent Mail Package Barcode Location

The address and barcode (see 204.2.0) must be placed squarely onto the largest surface area of the parcel, except when its shape and contents requires specific orientation for stability during processing; then the address and barcode(s) must be placed on the top. The address and barcode label(s) must not overlap any side of the parcel or other label. The barcode should be placed immediately adjacent to the delivery address and at least 1 inch from the edge of the parcel. The delivery address and barcode may be printed on an attachment or enclosure in a window envelope affixed to the parcel, subject to the reflectance standards in 204.2.2.8. The barcode may be placed on a separate label or in an alternate location on the address label, subject to the clearance standards in 6.2. Barcodes that are not placed immediately adjacent to the delivery address must not encroach the return address, postage, applicable markings, endorsements, and extra service labels. Intelligent Mail package barcodes (see 204.2.0) may be used in lieu of GS1-128 routing barcodes, following the same placement standards.

6.2 Clear Zone for GS1-128 Routing Barcode or Intelligent Mail Package Barcode

The barcode must be located as specified in 6.1. No printing may appear in an area 1/8 inch above and below the barcode. A minimum clear (quiet) zone equal to 10 times the average measured narrow element (bars or space) width must be maintained to the left and right of the barcode.

6.3 Intelligent Mail Barcodes

Intelligent Mail barcodes (IMb) do not meet barcode eligibility requirements for parcels and do not qualify for any barcode-related prices for parcels, but one barcode may be included only in the address block on a parcel, except on eVS parcels. An Intelligent Mail barcode in the address block must be placed according to 5.3.

7.0 Repositionable Notes (RPNs)

7.1 Use

RPNs are not assessed a fee when used, and must meet all of the following standards:

  1. RPNs may be attached to letter- and flat-size commercial First-Class Mail, USPS Marketing Mail, and Periodicals mailpieces.
  2. For letter-size mailpieces, attach a single RPN to the address side of the mailpiece as specified in Exhibit 7.1b.

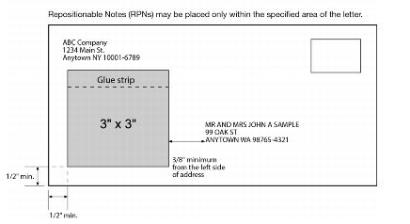

Exhibit 7.1b Placing RPNs on Letters

Exhibit 7.1b Placing RPNs on Letters

  1. For flat-size mailpieces, a single RPN may be attached to either the address side or nonaddress side of the mailpiece and attached in the locations described and shown in Exhibit 7.3g1 and Exhibit 7.3g2.
  2. RPNs are included as an integral part of the mailpiece for weight and postage price computation purposes.
  3. The written and graphic characteristics of the notes are considered when determining eligibility of mailpieces mailed at the USPS Marketing Mail and Nonprofit USPS Marketing Mail prices.
  4. Attach the RPNs to all pieces in the mailing, except as provided for non-identical manifested mail.
7.2 Mailpiece Characteristics

Each mailpiece must:

  1. Not be in a plastic wrapper (e.g., polybag, polywrap, or shrinkwrap).
  2. Be letter-size (including cards) or flat-size.
7.3 RPN Characteristics

RPNs must:

  1. Measure 3 inches by 3 inches, plus or minus 1/8 inch for either dimension.
  2. Not contain phosphorescent or red fluorescent colorants.
  3. Be adhered with a minimum of 3/4 inch (with a tolerance of 1/16 inch) adhesive strip across the top portion on the reverse side of the note.
  4. Not be placed in a manner that interferes with the delivery address, price markings, or postage and must not display a specific address or ZIP Code. References to general landmarks are permissible.
  5. Not be manually affixed.
  6. On letter-size mailpieces:
    1. Position the RPN parallel with the length of the mailpiece.
    2. Affix RPNs with labeling equipment to ensure adequate adhesion; do not affix RPNs manually.
    3. Place the RPN to the left of the delivery address, no closer than 3/8 inch from the left edge of the delivery address.
    4. Place the RPN at least 1/2 inch (with a tolerance of 1/8 inch) from the bottom and left edges of the mailpiece.
  7. On flat-size mailpieces:
    1. If the RPN is placed on the address side of the mailpiece, position the RPN according to Exhibit 7.3g1.

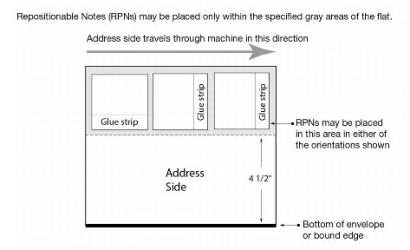

Exhibit 7.3g1 Placing RPNs on Flats—Address Side

Exhibit 7.3g1 Placing RPNs on Flats - Address Side

  1. If the RPN is placed on the nonaddressed side of the mailpiece, position the RPN according to Exhibit 7.3g2.

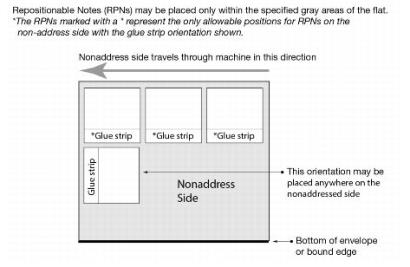

Exhibit 7.3g2 Placing RPNs on Flats—Nonaddress Side

Exhibit 7.3g2 Placing RPNs on Flats - Nonaddress Side

7.4 RPNs on Automation-Price Mailpieces
7.4.1 Letter-Size Mailpieces

Letter-size mailpieces with RPNs claiming automation prices must meet the standards in 7.1 through 7.3, 201.3.0, and the following additional standards:

  1. Each mailpiece must be rectangular and have a surface smoothness of 195 Shefield Units or smoother.
  2. Enveloped mailpieces. Each mailpiece prepared in an envelope must be constructed from paperstock having a basis weight of 20 pounds or greater. Window envelopes must have a closed panel made of polystyrene or glassine. Each enveloped mailpiece is limited to the following dimensions:
    1. For height, no less than 4-1/8 inches and no more than 6 inches high.
    2. For length, no less than 8 inches and no more than 9-1/2 inches long.
    3. For thickness, no less than 0.02 inch and no more than 0.125 inch thick.
  3. Oversize cards. Each mailpiece prepared as an oversize card is limited to the following dimensions:
    1. For height, no less than 4-1/2 inches and no more than 6 inches high.
    2. For length, no less than 8-1/2 inches and no more than 9 inches long.
    3. For thickness, no less than 0.009 inch thick (cards 5-3/4 inches or more in height must be no less than 0.012 inch thick.)
7.4.2 Flat-Size Mailpieces

Flat-size mailpieces with RPNs claiming automation prices must meet the standards in 1.0 through 3.0 and 201.6.0.

7.5 Compliance

Mailers must comply as follows:

  1. RPNs must be obtained from an approved RPN vendor (see www.usps.com for a listing of approved vendors). Prospective vendors can obtain USPS standards and test procedures from USPS Engineering (see 608.8.0 for address). Testing must be performed by a certified independent laboratory.
  2. Mailers must present evidence at the time of mailing to show that their RPNs have been supplied by an approved vendor. The vendor name on the reverse side of the note will be sufficient as evidence; in lieu of the vendor name printed on the notes, an invoice from the approved vendor for purchase of the RPNs will constitute such evidence.
  3. As part of each mailing, mailers must include two pieces addressed to the manager, USPS Engineering Letter Technology, Attn: RPN Sample (see 608.8.0 for address).

8.0 Facing Identification Mark (FIM)

8.1 Using FIMs

The facing identification mark (FIM) serves to orient and separate certain types of First-Class Mail during the facing-canceling process. Mailers must use the appropriate FIM as follows:

  1. All letter-size business reply mail (BRM) under 505.1.0.
  2. All letter-size permit reply mail (PRM) under 505.2.0.
  3. Letter-size meter reply mail (MRM) under 505.2.5 or courtesy reply mail (CRM) as provided under 505.2.6.
  4. Letter-size mail with IBI printed with nonfluorescent ink directly onto the envelope by an IBI meter or a PC postage system must use FIM D.
  5. Return materials sent under 703.8.0..
  6. Share Mail cards and letter-size pieces mailed under 604.5.5.
  7. A FIM must not be used on other types of mail, except that a FIM may be used on a letter-size envelope with a permit imprint indicia when that envelope is designed for use as a reusable mailpiece under 601.6.0. A FIM used for this purpose must be the appropriate FIM for the postage payment method on the returned envelope (see 8.2).
8.2 Pattern

The FIM pattern is a nine-bit binary code represented by vertical bars (with corresponding space element). A printed bar is considered binary 1; a nonprinted bar (placeholder), binary 0. The required FIM pattern as shown in Exhibit 8.2.0 below depends on the type of mail and the presence of an Intelligent Mail barcode as follows:

  1. FIM A is used for CRM and MRM with a preprinted barcode. (FIM A binary code is 110010011.)
  2. FIM B is used for BRM without a preprinted BRM ZIP+4 barcode. (FIM B binary code is 101101101.)
  3. FIM C is used for BRM with a preprinted BRM ZIP+4 barcode and for PRM with a preprinted delivery-point barcode. (FIM C binary code is 110101011.)
  4. FIM D is used for letter-size First-Class Mail with IBI printed with nonfluorescent ink directly on the envelope. (FIM D binary code is 111010111.)
  5. FIM E is used for postcard-size and letter-size First-Class Mail with customized services. (FIM E binary code is 101000101.)

Exhibit 8.2.0 FIM Patterns

(Patterns not drawn to scale)



NAME

PATTERN

USE

BARCODED?

FIM A

Pattern 1

Courtesy Reply Mail

Meter reply mail

Yes

FIM B

Pattern 2

Business Reply Mail

No

FIM C

Pattern 3

Business Reply Mail

Yes

FIM D

Pattern 4

IBI meters and
PC Postage systems

Not required

FIM E

Pattern 5

Customized Services

Yes
Intelligent Mail barcode only

8.3 Specification

The FIM must meet these specifications:

  1. A FIM clear zone to the upper right of the address side of the mailpiece must be maintained and must contain no printing other than the FIM. Exhibit 8.3.0 shows the FIM position and the FIM clear zone as defined by these boundaries:
    1. Left: 3 inches from the right edge of the piece.
    2. Right: 1-3/4 inches from the right edge of the piece.
    3. Top: top edge of the piece.
    4. Bottom: 5/8 inch from the top edge of the piece.
  2. The FIM bars must be 5/8 inch (±1/8 inch) high and 1/32 inch (±0.008 inch) wide and positioned as follows:
    1. The right edge of the rightmost bar of the FIM must be 2 inches (±1/8 inch) from the right edge of the piece.
    2. The tops of the FIM bars must be no lower than 1/8 inch from the top edge of the piece. The tops of the bars may extend over the top edge of the piece to the back (flap) of the piece if at least a 1/2-inch bar height is maintained on the address side.
    3. The bottoms of the FIM bars must touch the bottom boundary of the FIM clear zone or be no more than 1/8 inch above or below this boundary.

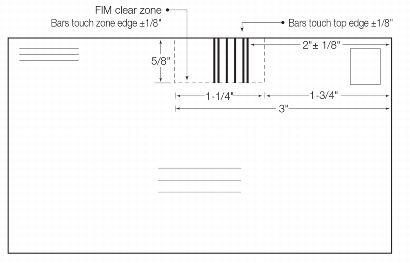

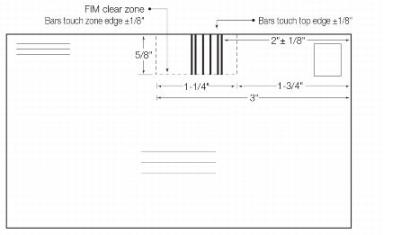

Exhibit 8.3.0 Position of FIM

Exhibit 9.3 Position of FIM. The image shows the specifications for placement of a Facing Identification Mark.

8.4 Dimensional Tolerances

Extraneous ink must not cause a FIM bar to exceed the specifications in 8.3. The combined effects of positional skew (slant of the entire FIM) and rotational skew (slant of the individual FIM bars) must be limited to ±5 degrees from the perpendicular edge of the printed FIM to the top edge of the mailpiece. Mail required to bear a FIM is considered nonmailable when the FIM has insufficient ink coverage, improper measurement, or ink in the space between the bars or when the FIM is enlarged or reduced. Camera-ready positives of FIMs, which must not be enlarged or reduced, are available at no charge from the USPS.

8.5 Reflectance

There must be at least a 30% print reflectance difference between the ink used for printing the FIM and the background material on which the FIM is printed in the red and green portions of the optical spectrum when measured with a USPS or USPS-licensed envelope reflectance meter.

9.0 [4-1-24] Hazardous Materials

9.1 General

Mailers must ensure that their packages meet all applicable markings under 3.0, and ancillary service endorsement requirements under 507.1.5.

9.2 Shipping Address Labels

When a shipping address label is used, the basic required price marking must be printed as provided under 3.9.

9.3 Additional Elements

All mailable hazardous materials must also include the applicable labels, markings, and tags, as required in Publication 52, Hazardous, Restricted, and Perishable Mail.
