260a Quick Service Guide

Commercial - Bound Printed Matter Flats

Physical Standards (201)

Maximum weight: 15 pounds, (automation flats 20 ounces except under 705.15.0).

For an overview of the physical standards for commercial flats, see Quick Service Guide 201c.

Prices and Fees (263.1.0)

For a complete listing of Bound Printed Matter prices — see Notice 123–Price List.

Presorted, Carrier Route, and destination NDC (DNDC) prices: separate per piece and per pound charges based on weight. Per pound charges must be calculated using a 1 pound minimum weight per piece, even if the pieces weigh less than 1 pound each. DSCF, and DDU prices are not zoned. Destination entry discounts apply to mail prepared as prescribed by USPS and addressed for delivery within service area of destination NDC/ASF, SCF, or delivery unit (DDU) (266). DDU prices not available for flat-size pieces weighing 1 pound or less unless sorted to carrier route.

No annual mailing fee; however, there is an annual destination entry mailing fee.

Content (263.2.0)

Bound Printed Matter is typically catalogs, directories, books, and other printed material that weighs up to 20 pounds, (automation flats 20 ounces except under 705.15.0) and meets content eligibility standards in 263.2.0. Contents must:

Eligibility Standards (263.4.0)

Eligible mailings must meet the following minimum pieces:

Each piece must include complete delivery address with correct ZIP Code or ZIP+4 code. Return address required for pieces with ancillary service endorsement or extra services.

For Presorted prices, a certified process (263.4.4) must be used within 12 months before mailing to ensure the accuracy of 5-digit ZIP Codes.

For the Carrier Route price, carrier route information must be updated using a CASS-certified process within 120 days before the mailing (263.5.0).

Rigid, nonrectangular, and pieces that are not uniformly thick must be prepared as parcels and pay parcel prices based on weight (263.1.0).

Postage Payment (264)

Permit imprint (604.5.0).

Postage statement: PS Form 3605-R.

Mail Preparation (265)

Price markings:

Pieces must be separated by zones when presented unless authorized under 705.

Enter and Deposit (266)

Generally at the Post Office where permit is held. For destination entry, see 266.3.0266.6.0.

Preparation



Bundling and Sacking Sequence Presorted Flats (265.5.0)

5-Digit/Scheme 1

Bundles: Scheme bundles required for 5-digit ZIP Codes in L007. Required at 10 pieces or 10 pounds; smaller volumes not permitted. 2 Maximum weight 20 pounds or, if placed in 5-digit sack, 40 pounds.

Labels: Red Label 5 SCH, Red Label 5, or optional endorsement line (OEL) (203.7.0).

3-Digit/Scheme 1

Bundles: Scheme bundles required for 3-digit ZIP Codes in L008. Required at 10 pieces or 10 pounds; smaller volumes not permitted. 2 Maximum weight 20 pounds.

Labels: Green Label 3 SCH, Green Label 3, or OEL.

ADC

Bundles: Required at 10 pieces or 10 pounds; smaller volumes not permitted. 2 Maximum weight 20 pounds.

Labels: Pink Label A or OEL.

Mixed ADC

Bundles: Required with no minimum. Maximum weight 20 pounds.

Labels: Tan Label X or OEL.

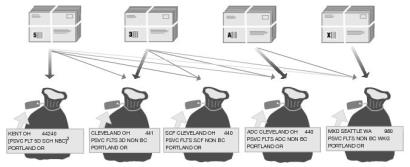

Bundling and sacking sequence for presorted bound printed matter flats.

5-Digit/Scheme 1

Sacks: Required at 20 addressed pieces or 20 pounds, smaller volumes not permitted

Labels: 3 Line 1: For 5–digit scheme sacks, use L007, Column B. For 5-digit sacks, use city, state, and 5-digit ZIP Code on mail. Line 2: For 5-digit scheme sacks, use “PSVC FLT 5D SCH NBC.” For 5–digit sacks, use “PSVC FLTS 5D NON BC.”

3-Digit

Sacks: Required at 20 addressed pieces or 20 pounds, smaller volumes not permitted.

Labels: For Line 1, use L002, Column A. For Line 2, use “PSVC FLTS 3D NON BC.”

SCF

Sacks: Optional at 20 addressed pieces or 20 pounds, smaller volumes not permitted.

Labels: For Line 1, use L005, Column B. For Line 2, use “PSVC FLTS SCF NON BC.”

ADC

Sacks: Required at 20 addressed pieces or 20 pounds, smaller volumes not permitted.

Labels: For Line 1, use L004, Column B. For Line 2, use “PSVC FLTS ADC NON BC.”

Mixed ADC

Sacks: Required with no minimum.

Labels: For Line 1, use L009, Column B. For Line 2, use “PSVC FLTS NON BC WKG.”

Each bundle (except mixed ADC bundles) must contain at least two addressed pieces.

For Bound Printed Matter flat-size pieces claiming a barcode discount, see page four.

1. For mailings consisting entirely of pieces meeting the automation-compatibility standards in 201.6.0 pieces must be prepared in 5-digit scheme and 3-digit scheme bundles and 5-digit scheme sacks. Mailers must prepare all possible 5-digit scheme bundles and 5-digit scheme sacks before preparing 5-digit bundles and 5-digit sacks. All possible 3-digit scheme bundles must be prepared before preparing 3-digit bundles. 5-digit bundles of flats placed in 5-digit sacks may weigh a maximum of 40 pounds.

2. Bundles may contain less than the 10 piece or 10 pound minimum if the bundle size would exceed the maximum size (265.2.3).

3. For 5-digit scheme sacks, use “PSVC FLT 5D SCH NBC,” for 5-digit sacks, use “PSVC FLTS 5D NON BC.”



Bundling and Sacking Sequence Carrier Route Flats (265.6.0)

Bundles: 1 Required at 10 addressed pieces or 10 pounds for an individual carrier route, smaller volumes not permitted. 1 Maximum weight 40 pounds. Each bundle must contain at least two addressed pieces except for the last bundle to each carrier route destination under 601.3.0.

Labels: Facing slip (601.2.0), optional endorsement line (203.7.0), or carrier route information line (203.8.0).

Price: Carrier Route.

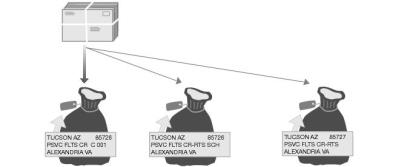

Carrier Route bundling and sacking sequence for bound printed matter flats.

Carrier Route

Sacks: Required at 20 addressed pieces or 20 pounds, smaller volumes not permitted.

Labels: For Line 1, use 5-digit ZIP Code destination of bundles. For Line 2, use “PSVC FLTS CR” followed by the route type and number.

5-Digit Scheme Carrier Routes

Sacks: Required, no minimum.

Labels: For Line 1, use L001, Column B. For Line 2, use “PSVC FLTS CR-RTS SCH.”

5-Digit Carrier Routes

Sacks: Required, no minimum.

Labels: For Line 1, use 5-digit ZIP Code destination of bundles. For Line 2, use “PSVC FLTS CR-RTS.”

1. Bundles may contain less than the 10 piece or 10 pound minimum if the bundle size would exceed the maximum size (265.7.3.1).



Bundling and Sacking Sequence Barcoded Flats (265.7.0)

5-Digit/Scheme 1

Bundles: Scheme bundles required for 5-digit ZIP Codes in L007. Required at 10 pieces or 10 pounds; smaller volumes not permitted; 2 maximum weight 20 pounds.

Labels: Red Label 5 SCH, Red Label 5, or optional endorsement line (OEL) (203.7.0).

3-Digit/Scheme 1

Bundles: Scheme bundles required for 3-digit ZIP Codes in L008. Required at 10 pieces or 10 pounds; smaller volumes not permitted; 2 maximum weight 20 pounds.

Labels: Green Label 3 SCH, Green Label 3, or OEL.

ADC

Bundles: Required at 10 pieces or 10 pounds; smaller volumes not permitted; 2 maximum weight 20 pounds.

Labels: Pink Label A or OEL.

Mixed ADC

Bundles: Required with no minimum. Maximum weight 20 pounds.

Labels: Tan Label X or OEL.

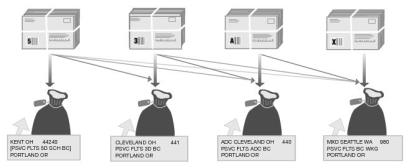

Bundling and sacking sequence for barcoded bound printed matter flats.

5-Digit/Scheme

Sacks: Required at 20 addressed pieces.

Barcoded Labels: Line 1: For 5–digit scheme sacks, use L007, Column B. For 5-digit sacks, use city, state, and 5–digit ZIP Code on mail. Line 2: For 5-digit scheme, use “PSVC FLTS 5D SCH BC.” For 5-digit sacks, use “PSVC FLTS 5D BC.”

3-Digit

Sacks: Required at 20 addressed pieces (except for optional bundles with 3-digit ZIP Code prefixes indicated by an “N” in L002).

Barcoded Labels: For Line 1, use L002, Column A, for destination facility. For Line 2, use “PSVC FLTS 3D BC.”

ADC

Sacks: Required at 20 addressed pieces.

Barcoded Labels: For Line 1, use L004, Column B for destination facility. For Line 2, use “PSVC FLTS ADC BC.”

Mixed ADC

Sacks: Required, no minimum for any remaining bundles placed in mixed ADC sacks.

Barcoded Labels: For Line 1, use L009, Column B. For Line 2, use “PSVC FLTS BC WKG.”

Price is based on type of bundle regardless of sack in (or pallet on) which it is placed.

1. Mailers must prepare all possible 5-digit scheme bundles and 5-digit scheme sacks before preparing 5-digit bundles and 5–digit sacks. All possible 3-digit scheme bundles must be prepared before preparing 3-digit bundles.

2. Bundles may contain less than the 10 piece or 10 pound minimum if the bundle size would exceed the maximum size (265.2.3).
