201d Quick Service Guide

Commercial - Designing Flats for Automated Processing

Related QSGs

201c, Physical Standards for Discount Flats

230e, First-Class Mail Automation Flats

240f, USPS Marketing Mail Automation Flats

260a, Bound Printed Matter Flats

207f, Periodicals Barcoded (Automation) Flats

Overview

Flat-size pieces meeting the applicable automation standards in 201.3.0 are entitled to automation or Periodicals machinable prices. Size, weight, thickness, polywrap, and flexibility standards vary for the class of mail. For eligibility and preparation standards for specific price options, see the appropriate Quick Service Guide above.

Physical Standards (201.6.0)

Shape: rectangular, with four square corners, or with finished corners that do not exceed a radius of 0.125 inch (1/8 inch).

Dimensions:

• Minimum height is 5 inches. Maximum height is 12 inches.
• Minimum length is 6 inches. Maximum length is 15 inches.
• For bound or folded pieces, the edge perpendicular to the bound edge or folded edge may not exceed 12 inches.
• Minimum thickness is 0.009 inch. Maximum thickness is 0.75 inch.

The length of a flat-size mailpiece is the longest dimension. The height is the dimension perpendicular to the length (201.4.2).

Maximum weight:

• First-Class Mail: 13 ounces.
• Periodicals: 20 ounces for pieces prepared under 201.6.0.
• USPS Marketing Mail: less than 16 ounces.
• Bound Printed Matter: 20 ounces, (except under 705.15.0).

Uniform thickness: The contents must be uniformly thick so that any bumps, protrusions, or irregularities do not cause more than 1/4 inch variance in thickness. The mailpiece must have a smooth and regular shape and be free of creases, folds, tears, or other irregularities (201.6.5).

Flexibility and deflection: automation flats must meet the flexibility standards in 201.6.5 and deflection standards in 201.4.6.

Polywrap films and similar coverings must meet the standards in 201.4.4. A list of approved polywrap and polywrap manufacturers is available on postalpro.usps.com. The wrap direction must be around the longer axis of the mailpiece, with the seam parallel to that axis. The longer axis is always parallel to the length of the mailpiece. The preferred seam placement is on the nonaddressed side of the mailpiece.

Prohibitions: Clasps, strings, buttons, or other protrusions; also staples, unless properly used as a binding method (201.6.5).

Delivery Address (202.1.0)

Flats must have the address of the intended recipient, visible and legible, only on the side of the piece bearing postage. (Periodicals do not display postage and the address may appear on either side.) Use at least 8-point type for addresses on flats prepared without delivery point barcodes. A sans-serif font printed in all capital letters is preferred. The individual characters in the address cannot overlap. The individual lines in the address cannot touch or overlap. A minimum 0.028-inch clear space between lines is preferred. Mailers preparing flats with Intelligent Mail barcode delivery point routing codes may print addresses in all capital letters and a minimum of 6-point type.

Address Placement (202.2.0)

On all Periodicals, USPS Marketing Mail, Bound Printed Matter, Media Mail, and Library Mail flats mailed at presorted, automation, or carrier route prices, mailers must place the delivery address parallel or perpendicular to the top edge on the front or the back of the mailpiece and within the top half of the mailpiece. If there is a bound or folded edge, the address as read must be within the top half when the bound or folded edge is to the right. It cannot be upside down as read in relation to the top edge.

If the address is placed on a mailing wrapper, the address must be on a flat side, not on a fold. If a polybag is used, the address must not appear on a component that rotates within the bag and must remain visible throughout the addressed component’s range of motion. See 207.3.3.11 for addresses prepared on Periodicals label carriers.

Barcodes (202.5.0)

Barcodes must be at least 1/8 inch from any edge of the address side.

Address block barcodes must be in one of these four positions:

• Above the address line containing the recipient’s name.
• Below the city, state, and ZIP Code line.
• Above or below the keyline information.
• Above or below the optional endorsement line.

The surface the barcode is printed on must meet the reflectance standards in 204.1.4.

The minimum clearance between the barcode and any information line above or below it within the address block must be 0.028 inch for an Intelligent Mail barcode. The separation between the barcode and the top line or bottom line of the address block must not exceed 0.625 (5/8) inch. The clearance between the leftmost and rightmost bars and any printing must be at least 0.125 (1/8 inch).

Window Envelope Barcode Placement:

• 0.125 (1/8) inch—minimum clearance between the leftmost and rightmost bars and any printing or window edge.
• 0.028 inch—minimum clearance between Intelligent Mail barcode and top and bottom edges of window.

For envelope window, a clear space must be maintained when insert is moved to its full limits in each direction within envelope (202.5.0).

Address Label Barcode Placement:

• 0.125 (1/8) inch—minimum clearance between the barcode and the left and right edges of the address label.
• 0.028 inch—minimum clearance between Intelligent Mail barcode and top and bottom edges of address label.

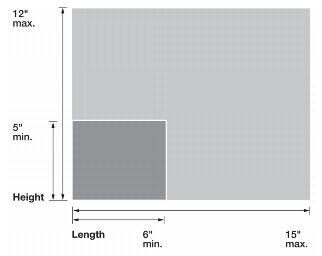

First-Class Mail, USPS Marketing Mail, Bound Printed Matter, and Periodicals (201.3.0)

Length Minimum: 6 inches Maximum: 15 inches Height Minimum: 5 inches Maximum: 12 inches Thickness Minimum: 0.009 inch Maximum: 3/4 inch Maximum Weight First-Class Mail cannot weigh more than 13 ounces. USPS Marketing Mail must weigh less than 16 ounces. Periodicals and Bound Printed Matter cannot weigh more than 20 ounces, (except under 705.15.0, BPM). Flexibility Must meet flexibility standards in 201.4.3 and deflection standards in 201.4.6. Polywrapped Pieces Must meet all six properties in Exhibit 201.4.5.1 If an address label is used on the outside of the polywrapped piece, the haze property is not required. Polywrap seam must be parallel to longest dimension. The preferred seam placement is on the nonaddressed side of the mailpiece. If seam is on the addressed side, it must not cover the delivery address, barcode, postage area, or any required markings. Flat-Size Booklet-Type Mailpieces (201.6.5.3) The contents of the mailpiece prepared in sleeves or other wrappers must be sufficiently secure in the sleeve or wrapper to stay in place during processing. If material bearing the delivery information or barcode for the mailpiece is enclosed in a partial wrapper, that wrapper must be sufficiently secure to prevent the contents from shifting and obscuring the delivery address or barcode.
